Available Attachments include
Auger Driver with Auger bit $45.45 / DAY
• 450mm
• 300mm
• 200mm
• 450mm
• 300mm
• 200mm
Hydraulic Grab $45.45 / DAY
Sleeper Grab $18.18 / DAY
Rock Breaker 59.09/ Day
KEY SPECS
- Engine HP : 15.1hp
- Minimum Width : 990mm
- Maximum Width : 1240mm
- Maximum height : 2340mm
- Operating weight : 1,675kg
- Maximum digging depth : 2310mm
- High speed : 4.1 km/h

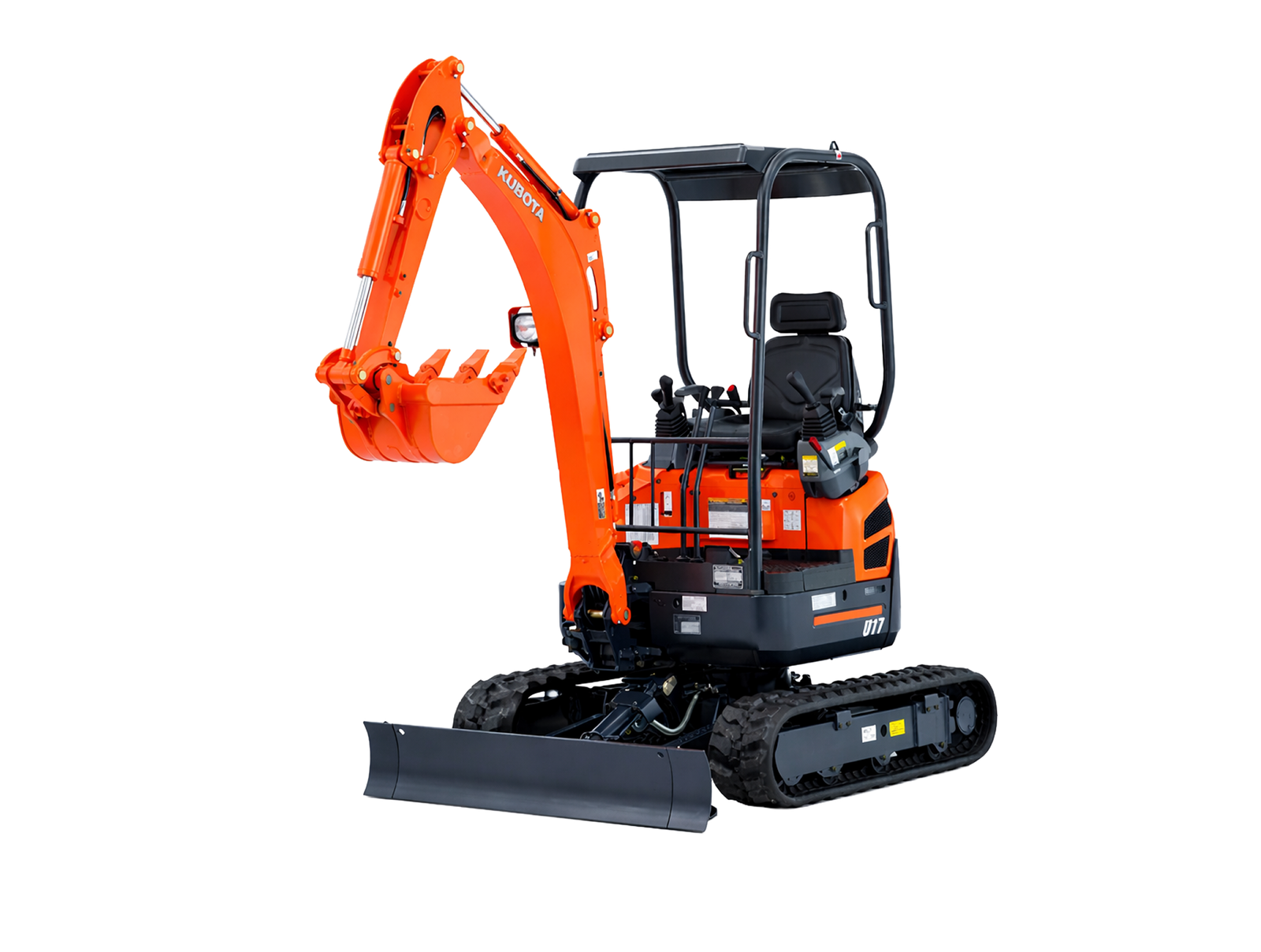

KUBOTA U17 1.7t EXCAVATOR HIRE
$155.00 +GST
- / Day
Standard Attachments
- 1000mm Bucket
- 450mm Bucket
- 200mm Bucket
- 300mm Ripper
1000mm Bucket
450mm Bucket
200mm Bucket
300mm Ripper
450mm Bucket
Available Attachments
Auger Driver with Auger bit $45.45 / DAY
• 450mm
• 300mm
• 200mm
Hydraulic Grab $45.45 / DAY
Sleeper Grab $18.18 / DAY
Rock Breaker 59.09/ Day
-
Auger Driver with Auger bit $45.45 / DAY
• 450mm
• 300mm
• 200mm
- Hydraulic Grab $45.45 / DAY
- Sleeper Grab $18.18 / DAY
- Rock Breaker 59.09/ Day
Additional charges
• Diesel Charges: $3/L
• Cleaning Fee: $35/hr
• Late/Cancellation Fee (under 24hrs): $50
*Roof Removal requires 24 hours notice and only done by the JH team
*Electric Brakes will be provided
*Electric Brakes will be provided
(No deposit required, No license required to operate machine, all prices are + gst )
KUBOTA U17 1.7t EXCAVATOR HIRE
$155.00 +GST
- / Day
KEY SPECS
- Engine HP : 15.1hp
- Minimum Width : 990mm
- Maximum Width : 1240mm
- Maximum height : 2340mm
- Operating weight : 1,675kg
- Maximum digging depth : 2310mm
- High speed : 4.1 km/h
Standard Attachments
1000mm Bucket
450mm Bucket
200mm Bucket
300mm Ripper
1000mm Bucket
450mm Bucket
200mm Bucket
300mm Ripper
- 1000mm Bucket
- 450mm Bucket
- 200mm Bucket
- 300mm Ripper
Available Attachments
Auger Driver with Auger bit $45.45 / DAY
• 450mm
• 300mm
• 200mm
Hydraulic Grab $45.45 / DAY
Sleeper Grab $18.18 / DAY
Rock Breaker 59.09/ Day
Auger Driver with Auger bit $45.45 / DAY
• 450mm
• 300mm
• 200mm
Hydraulic Grab $45.45 / DAY
Sleeper Grab $18.18 / DAY
Rock Breaker 59.09/ Day
-
Auger Driver with Auger bit $45.45 / DAY
• 450mm
• 300mm
• 200mm
- Hydraulic Grab $45.45 / DAY
- Sleeper Grab $18.18 / DAY
- Rock Breaker 59.09/ Day
*Additional charges
• Diesel Charges: $3/L
• Cleaning Fee: $35/hr
• Late/Cancellation Fee (under 24hrs): $50
*Roof Removal requires 24 hours notice and only done by the JH team
*Electric Brakes will be provided
*Electric Brakes will be provided
(No deposit required, No license required to operate machine, all prices are + gst )
Delivery / Pickup Info
Product Description
Specifications
Hire Conditions
Delivery / Pickup Info
Pick up
Pick up with vehicle with the correct towing capacity is required for legal requirements. Our trailered equipment all come with electric brakes fitted as standard, so no electric controller is needed to hire our equipment Pick up address is 20a/38 eastern services road Stapylton
Delivery
Delivery options are available for all equipment listed. For exact quote we will need an address as we base on per km from our warehouse located in Stapylton. Additional discounts are given to certain locations and certain hire customers. Contact us to get the best price today. Long term hires will receive discounted delivery according to location.
Product Description
The Kubota U17-3 is the perfect excavator for tackling jobs in the tightest of spaces. Powered by Kubota 16.1HP engine, renowned worldwide for their outstanding reliability, the U17-3 delivers on superior maneuverability and maximum digging performance. This compact excavator delivers the power you need, the control you want and the smoothest performance when you need it most.
Specifications
Here’s a more detailed breakdown of the Kubota U17-3 specs:
Engine & Power:
● Engine: Kubota D902-E3 Tier IV
● Horsepower: 16.1 hp @ 2,300 RPM
● Displacement: 54.8 Cu In
Dimensions & Weight:
● Operating Weight: 1.7 tonnes (3,814 lbs)
● Overall Length: 11’ 7”
● Overall Height: 7’ 8”
● Overall Width: 3’ 3” – 4’ 1” (adjustable track width)
● Minimum Ground Clearance: 5.9”
● Bucket Capacity: 0.04 m³
● Bucket Width: 0.45 m
Digging & Lifting:
● Max. Digging Depth: 7’ 7” (2310 mm)
● Max. Vertical Digging Depth: 6’ 3” (1910 mm)
● Max. Dumping Height: 8’ (2440 mm)
● Max. Digging Height: 11’ 7” (3540 mm)
● Max. Digging Radius: 13’ 9”
● Bucket Breakout Force: 1550 kgf (3417.2 lbs)
● Arm Breakout Force: 1918 lbs
● Rated Lifting Capacity: 160 kg
Travel & Swing:
● Travel Speed (Low/High): 1.4/2.6 mph
● Swing Speed: 9.1 rpm
● Boom Swing Angle: 65 degrees (left), 58 degrees (right)
● Swing: Zero-tail swing
Other Features:
● Adjustable Track Width: Yes (990mm – 1240mm)
● Auxiliary Hydraulic Flow: 27 l/pm
● Blade: Extendable dozer blade
● Fuel Capacity: 5.1 gal (19 liters)
● Hydraulic System Fluid Capacity: 6.1 gal
● Hydraulic Pump Flow Capacity: 3.5 gal/min
Engine & Power:
● Engine: Kubota D902-E3 Tier IV
● Horsepower: 16.1 hp @ 2,300 RPM
● Displacement: 54.8 Cu In
Dimensions & Weight:
● Operating Weight: 1.7 tonnes (3,814 lbs)
● Overall Length: 11’ 7”
● Overall Height: 7’ 8”
● Overall Width: 3’ 3” – 4’ 1” (adjustable track width)
● Minimum Ground Clearance: 5.9”
● Bucket Capacity: 0.04 m³
● Bucket Width: 0.45 m
Digging & Lifting:
● Max. Digging Depth: 7’ 7” (2310 mm)
● Max. Vertical Digging Depth: 6’ 3” (1910 mm)
● Max. Dumping Height: 8’ (2440 mm)
● Max. Digging Height: 11’ 7” (3540 mm)
● Max. Digging Radius: 13’ 9”
● Bucket Breakout Force: 1550 kgf (3417.2 lbs)
● Arm Breakout Force: 1918 lbs
● Rated Lifting Capacity: 160 kg
Travel & Swing:
● Travel Speed (Low/High): 1.4/2.6 mph
● Swing Speed: 9.1 rpm
● Boom Swing Angle: 65 degrees (left), 58 degrees (right)
● Swing: Zero-tail swing
Other Features:
● Adjustable Track Width: Yes (990mm – 1240mm)
● Auxiliary Hydraulic Flow: 27 l/pm
● Blade: Extendable dozer blade
● Fuel Capacity: 5.1 gal (19 liters)
● Hydraulic System Fluid Capacity: 6.1 gal
● Hydraulic Pump Flow Capacity: 3.5 gal/min
Hire Conditions
Hire conditions are the basic steps required to successfully rent equipment through JustHire.
– 100 points of I.D
– Full payment must be made prior to pick-up and delivery, no exceptions.
– Terms and conditions signed
– Comply with legal requirements
– Follow our work hours 6am-6pm
– One day hire is 12 hours maximum , Charges will apply if extended or dropped of late.
We supply clean equipment with full fuel tanks, ready to use. When returning the machines, they must be refueled with fuel and cleaned. Additional charges will apply if not returned in this condition. Fuel charges: $3/L; Cleaning Fee: $35/hr.
