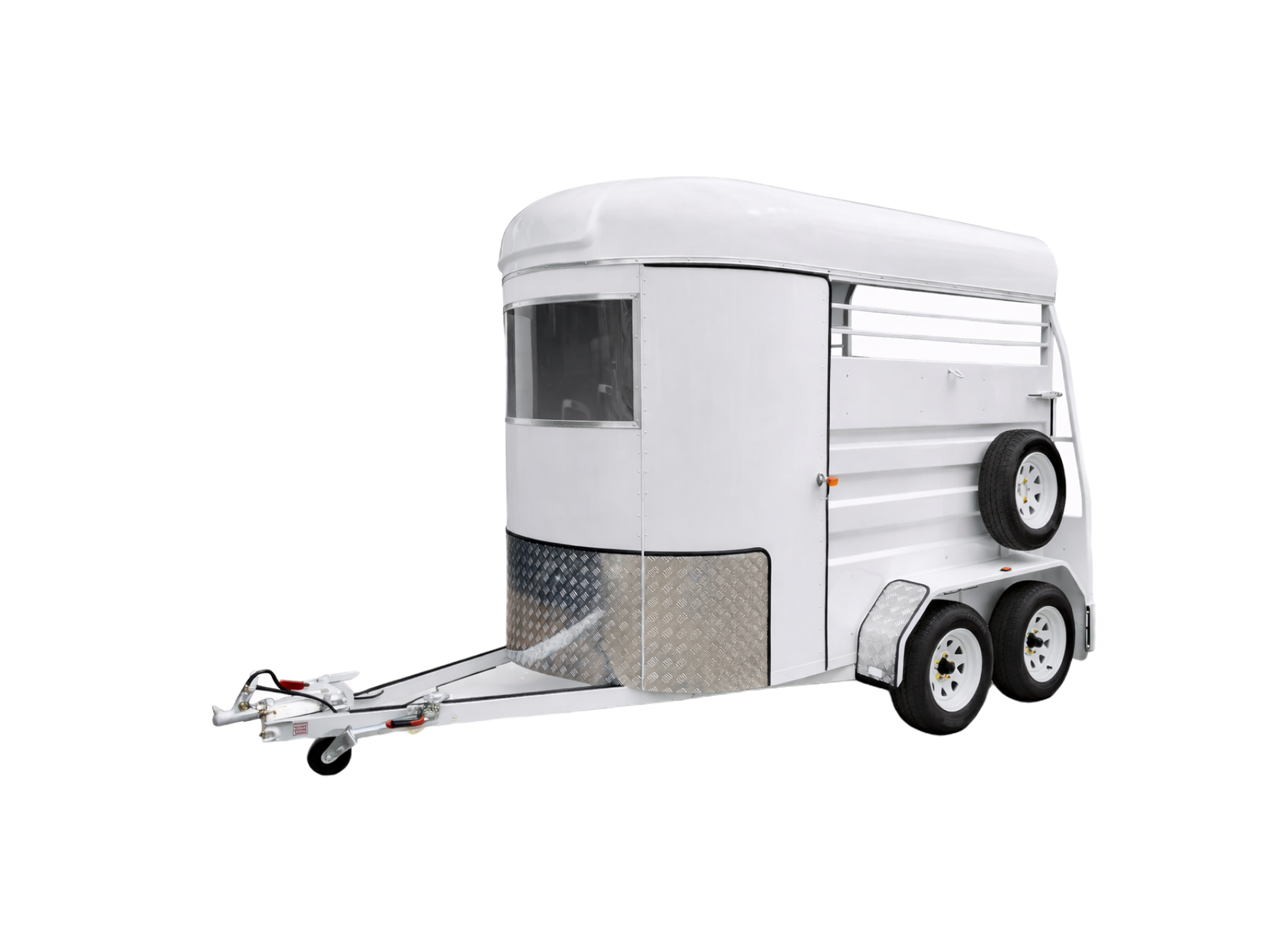

A horse float trailer is a specialized trailer designed for transporting horses safely and comfortably. It features a sturdy, enclosed space with dividers to secure the horse, as well as ramps or a step-up design for easy loading and unloading. The trailer is equipped with ventilation for airflow and smooth suspension for a stable ride. Ideal for transporting horses to events, stables, or veterinary visits, it ensures both safety and comfort during travel.

Here’s a breakdown of common specifications:
General Specifications:
● Aggregate Trailer Mass (ATM): The maximum weight the trailer is designed to weigh when fully loaded, including the trailer itself and its cargo.
● Tare Weight: The weight of the empty trailer.
● Internal Dimensions: The length, width, and height inside the trailer, crucial for horse comfort and safety.
● Axles: Single or tandem axles, depending on the trailer’s size and weight capacity.
● Brakes: Electric brakes are common for safety, especially on larger trailers.
● Suspension: Independent torsion rubber suspension is often used for a smooth ride.
● Loading Ramps: Ramps are essential for easy loading and unloading of horses.
● Safety Features: Padding, rump bars, chest bars, and tie-down points are standard safety features.
● Headroom: Sufficient headroom is crucial for horses, typically 75cm above the height of withers.
● Floor: Rubber matting is often used to provide a safe and non-slip surface for horses.
● Lighting: LED lighting is used for safety and visibility.
Examples of Horse Float Specifications:
● 2-Horse Straight Load Float:
● ATM: 3400 KG
● Tare Mass: 1520 KG
● Ball Weight: 145 KG
● Internal Dimensions (mm): L3425 W1700 H2225
● Body Dimensions (mm): L3475 W1750 H2280
● 12′ x 6′ Cattle and Horse Float:
● Internal Trailer Size: 3600mm x 1830mm x 2000mm
● ATM: 3500kg
● Tare: 1320kg
● Axles: Tandem
● Brakes: Electric
● 3-Horse Angle Load Float:
● Sizing: 4200mm x 2000mm x 2200mm
● ATM: 3500Kg
● GTM: 3150Kg
● Bay Length: 2500mm x 710mm
